Restaurant Grease Trap and Plumbing Design: Requirements, Sizing, and Maintenance

Nobody opens a restaurant thinking about grease traps. But the city certainly does. A grease trap is mandatory for virtually every commercial food service operation, it requires regular licensed maintenance, and getting it wrong can result in fines, health code violations, and sewer backups that shut down service on a Friday night. This is infrastructure you need to understand before design begins, not after the kitchen is built.

What a Grease Trap Does and Why It Exists

Municipal sewer systems are not designed to handle fats, oils, and grease (FOG) from commercial kitchens. When hot cooking oils and fats cool in sewer pipes, they solidify into blockages that cause backups affecting entire neighborhoods. Many cities have experienced large-scale sewer failures caused by accumulated grease from restaurants — giving municipal governments strong motivation to enforce grease trap requirements rigorously.

The grease trap — also called a grease interceptor for larger units — is installed within the kitchen drainage system to intercept FOG before it reaches the municipal sewer. The operating principle is density separation. Wastewater from kitchen sinks, dishwashers, and floor drains flows into the trap, where it slows and separates into three distinct layers. Solid food particles, being heavier than water, sink to the bottom. Fats, oils, and grease, being lighter than water, rise to the top and are retained. The relatively clean middle layer of water exits through the outlet and flows into the sewer.

According to Innodez, improper grease management can result in sewer blockages, environmental violations, and fines. In jurisdictions with active enforcement, repeat violations can result in permit revocation.

Two Types: Point-of-Use Traps vs. In-Ground Interceptors

Passive point-of-use traps are compact units installed directly under three-compartment sinks or adjacent to dishwashers. They typically range from 20 to 100 gallons and handle the drainage from a single fixture or small group of fixtures. Their advantage is simplicity: they are relatively inexpensive to install and easy to access for cleaning. Their limitation is capacity — they are appropriate only for low-volume operations or supplementary installations.

Large in-ground interceptors handle the combined drainage from an entire kitchen. They are installed in the ground — typically outside the building or under the parking lot — and range from 500 to 2,000 US gallons in capacity. They are fabricated from concrete, fiberglass, or steel, and require vehicle access for pump-out by certified haulers. These are the standard requirement for full-service restaurants, cafes, and any establishment with a commercial kitchen running significant volume.

The choice between these two types is rarely a choice at all — local regulatory requirements typically specify what is required based on the type of establishment, seating capacity, or anticipated wastewater volume. Confirm requirements with your local municipality and health department before finalizing plumbing design.

Sizing: The Critical Calculation

Undersized grease traps overflow and allow FOG to pass directly into the sewer — defeating their purpose and exposing you to enforcement action. Oversized traps waste space and increase installation cost. The sizing calculation must be right.

Innodez documents the standard sizing principle: the grease trap’s rated capacity must be at least twice the expected flow rate measured in gallons per minute from all connected fixtures. The calculation combines the flow rates of every drain feeding the trap — sinks, dishwasher, floor drains — and doubles it to arrive at the minimum required capacity.

For in-ground interceptors, local regulations frequently specify minimum sizes by establishment type. A full-service restaurant might be required to install a minimum 1,000-gallon interceptor regardless of calculated flow rates. These regulatory minimums exist because real-world grease loads from restaurants consistently exceed theoretical calculations.

A licensed plumber or mechanical engineer familiar with local codes should perform the sizing calculation, coordinated with your restaurant designer and specify the appropriate unit. This is not work to delegate to a general contractor who handles residential plumbing.

Placement and Installation Requirements

Grease traps must be installed on the drainage lines downstream of all kitchen fixtures that produce FOG — sinks, dishwashers, and floor drains under cooking equipment. Clean water sources like ice machine drain lines and restroom fixtures must be connected downstream of the trap, not upstream. Mixing clean water drainage with the grease trap circuit dilutes the trap contents and can reduce separation effectiveness.

For in-ground interceptors, placement must allow vehicle access for pump-out by a certified hauling contractor. An interceptor buried under landscaping or inaccessible without moving equipment will become a maintenance problem immediately. The access cover must be at or near grade level and clearly labeled.

The trap must be located on drainage lines that feed only kitchen waste, not building-wide waste. Restroom drainage must bypass the grease trap entirely. Some jurisdictions require separate inspection ports at the inlet and outlet of the interceptor for health department monitoring.

Maintenance: Legal Requirements, Not Optional

Grease trap maintenance is a legal requirement in most jurisdictions, and the maintenance intervals are codified in local plumbing codes or food service regulations. Allowing a trap to reach capacity without cleaning is a code violation, not just an operational inconvenience.

According to Innodez, passive point-of-use traps must be emptied and cleaned when they reach 25 percent capacity. Beyond that threshold, the floating grease layer becomes thick enough to begin passing through the outlet into the sewer — defeating the entire purpose of the device and creating environmental liability.

In-ground interceptors must be pumped out by certified haulers on schedules that vary by jurisdiction and usage volume. Most health departments require quarterly pump-outs for full-service restaurants, though high-volume operations may require more frequent service. The hauler is required to provide a manifest documenting the pump-out date, volume removed, and destination of the waste — documents you must retain for health department inspection.

Maintenance cost is predictable and should be built into the operating budget. Certified pump-outs for a 1,000-gallon interceptor typically run $200 to $400 per service in most US markets, with quarterly frequency totaling $800 to $1,600 annually. Neglecting this cost in your pro forma will produce an unpleasant surprise during operations.

Integration with Overall Plumbing Design

Grease trap design cannot be isolated from the overall kitchen plumbing layout. Every fixture that drains kitchen waste must be routed to the trap, and the drainage system must be designed with the appropriate slope, cleanout access, and pipe sizing to handle peak flow without backing up.

Commercial kitchen floor drains deserve particular attention. Floor drains under cooking equipment capture spilled cooking oil, cleaning water, and food solids. They must be connected to the grease trap circuit with appropriate trap primers and cleanouts. Floor drains positioned incorrectly — or omitted from equipment zones to save cost — create sanitation and drainage problems that are expensive to correct after construction.

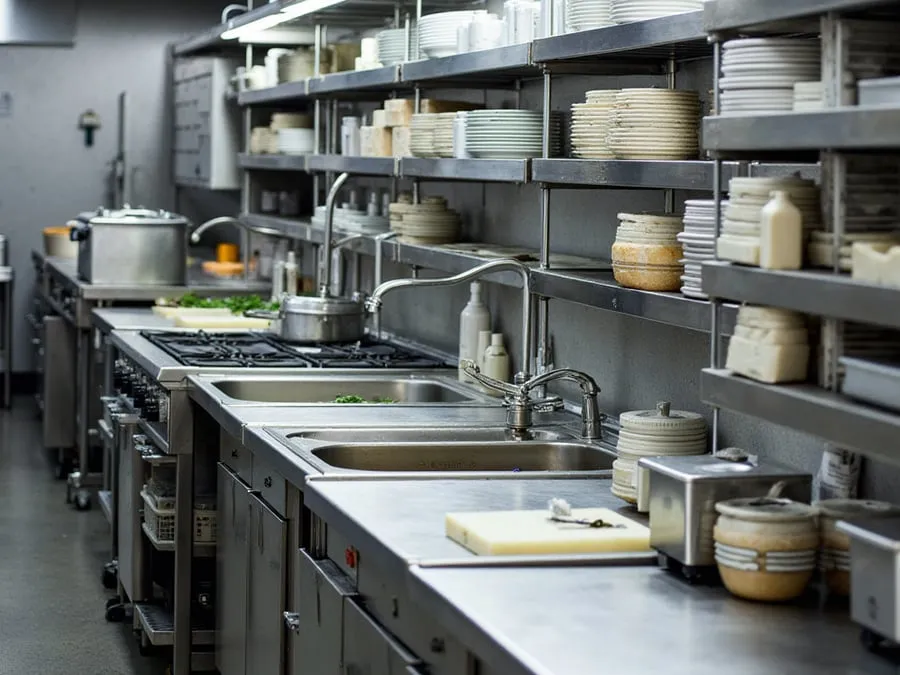

The three-compartment sink, required by health codes for all commercial food service operations, generates a significant share of kitchen grease load and must be plumbed directly to the grease trap or to a point-of-use trap under the sink.

Planning for Inspection

Health department inspections typically include grease trap inspection. Inspectors verify that the trap is properly maintained, that maintenance records are on file, that the trap is the correct size for the operation, and that it is accessible. A trap that is overfull, improperly maintained, or inaccessible is a health code violation that can result in a failing grade or even temporary closure.

Keep maintenance manifests from every pump-out on file, ideally in a binder accessible to any staff member who might need to produce them during an inspection. Document the location and access procedures for any in-ground interceptors so that new staff can locate and access them without assistance.

Common Mistakes

Restaurants that choose the cheapest point-of-use traps for a kitchen that actually requires an in-ground interceptor will fail inspection and face costly retrofit. The reverse — installing an oversized interceptor in a low-volume operation — wastes installation cost and creates longer intervals between pump-outs, during which grease accumulates and hardens, making cleaning more difficult and expensive.

Routing restroom drainage through the grease trap circuit is a plumbing error that contaminated the trap with materials that damage its separation function and increase maintenance frequency. Ice maker drain lines connected upstream of the trap add unnecessary water volume that dilutes the trap and reduces detention time.

Perhaps the most common mistake: treating grease trap design as a checkbox item rather than a system that needs to be engineered correctly for your specific operation. The volume of FOG your kitchen produces depends on your menu, your cooking methods, your cover count, and your operating hours. A restaurant that adds brunch service, expands the fry program, or increases volume after opening may need to upgrade its grease management system — an expensive and disruptive retrofit that proper initial design could have avoided.

Work with a licensed plumber who has commercial restaurant experience. Verify all requirements with your local municipality before finalizing design. Budget for ongoing maintenance as a fixed operating cost. And treat this system with the same seriousness as your exhaust hood — it protects your permit, your neighbors’ sewer system, and ultimately your ability to operate.
